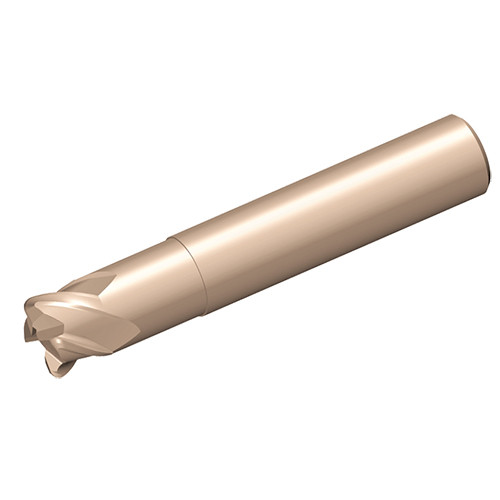

CRF 4160 200 320 TC3030
4 Flute Ceramic end mills with corner R and unequal spacing of cutting edges for machining of superalloys and less vibration in slotting and shouldering

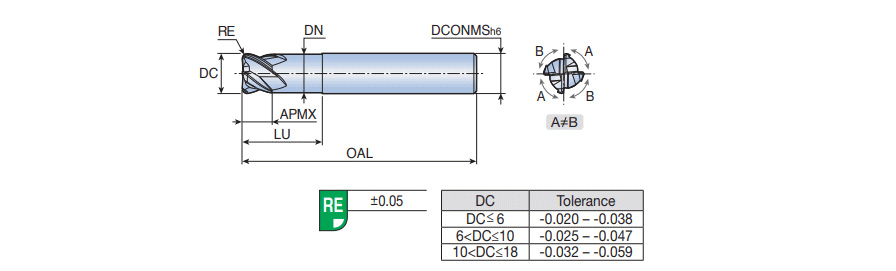

| Cutting Diameter (DC) | 16 mm | Usable Length (LU) | 32 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Applicable Material | | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 12 mm | Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | Solid Carbide End Mills | |
| Overall Length (OAL) | 83 mm | Corner Radius (RE) | 2 mm |
| Cutting Edge Material | Ceramic | Grade | TC3030 |
| Flute Count (NOF) | 4 | Neck Diameter (DN) | 15.5 |
| Flute Helix Angle (FHA) | 40 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Unit | M |
Product Features
| Family Description | 4 Flute Ceramic end mills with corner R and unequal spacing of cutting edges for machining of superalloys and less vibration in slotting and shouldering | FamilyName | CRF 4 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0625
Name
Square & Corner Radius End Mills
FamilyName
CRF 4
BrandName
Taegutec
