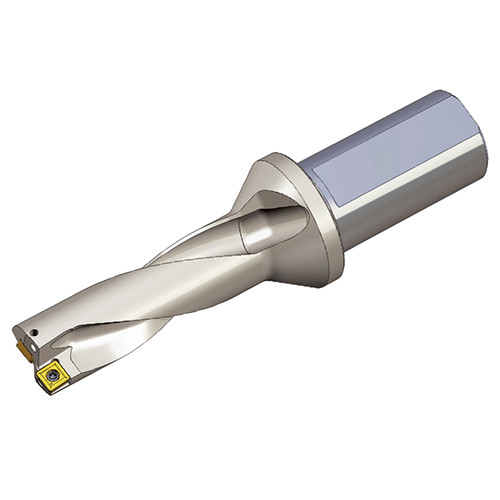

TDR 3490-40T2-14
Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD

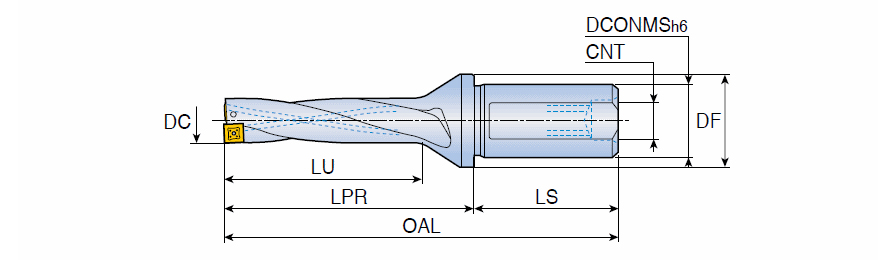

| Cutting Diameter (DC) | 49 mm | Overall Length (OAL) | 261 mm |
| Usable Length (LU) | 147 mm | Connection Thread Size (Ts) | Rc 1/4 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 40 mm | Length Group | 3xD |
| Shank Length (LS) | 70 mm | Body Material | Steel |
| Functional Length (LF) | 191 mm | Unit | M |
Product Features
| Family Description | Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 3xD | COO | S.KOREA |
Shipping Info
Weight per item
2.0800
