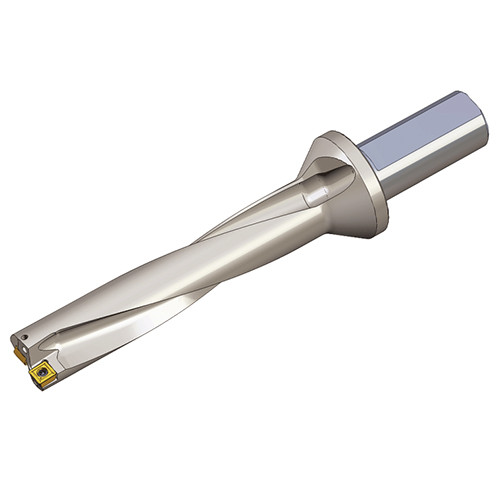

TDR 5140-20T2-05
Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD

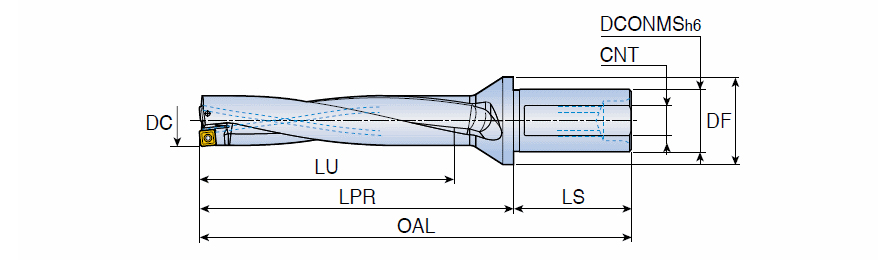

| Cutting Diameter (DC) | 14 mm | Overall Length (OAL) | 138 mm |
| Usable Length (LU) | 70 mm | Connection Thread Size (Ts) | M13X1.0 |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Length Group | 5xD |
| Shank Length (LS) | 50 mm | Body Material | Steel |
| Functional Length (LF) | 88 mm | Unit | M |
Product Features
| Family Description | Indexable drills with square inserts & enlarged chip gullet from twist coolant holes in drilling depth of 5xD | COO | S.KOREA |
Shipping Info
Weight per item
0.2200
